3535660 nm

· 3.5 mm × 3.5 mm
· Ceramic substrate, high power
· High PPF, WPE 80~85%
· LM-80 certified
Wavelength
(nm)
Radiant Power
(mW)
PPF/PF (μmol/s)  PPE/PE (μmol/J) Forward Cuttent
(mA)
Size
(mm)
660 1110 6.2 4.7 700 3.5×3.5
1090 5.9 4.4 700 3.5×3.5

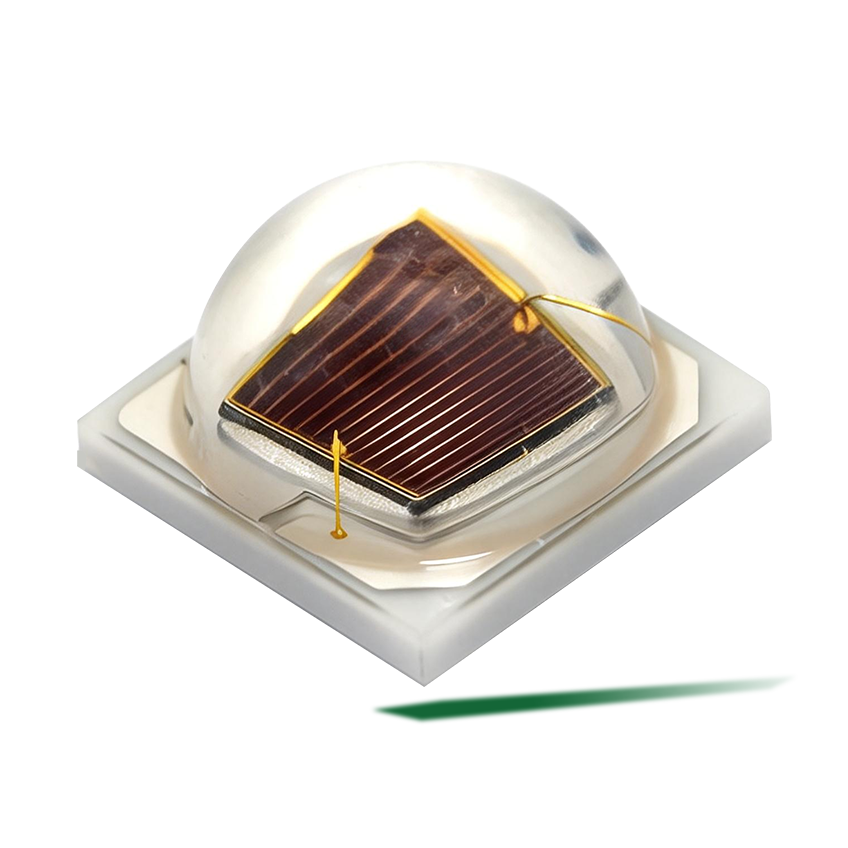

3535730 nm

· 3.5 mm × 3.5 mm
· Ceramic substrate, high power
· High PPF, WPE 80~85%
· LM-80 certified
Wavelength
(nm)
Radiant Power
(mW)
PF (μmol/s)  PPE/PE (μmol/J) Forward Cuttent
(mA)
Size
(mm)
730 970 5.9 4.3 700 3.5×3.5
820 5.0 3.6 700 3.5×3.5

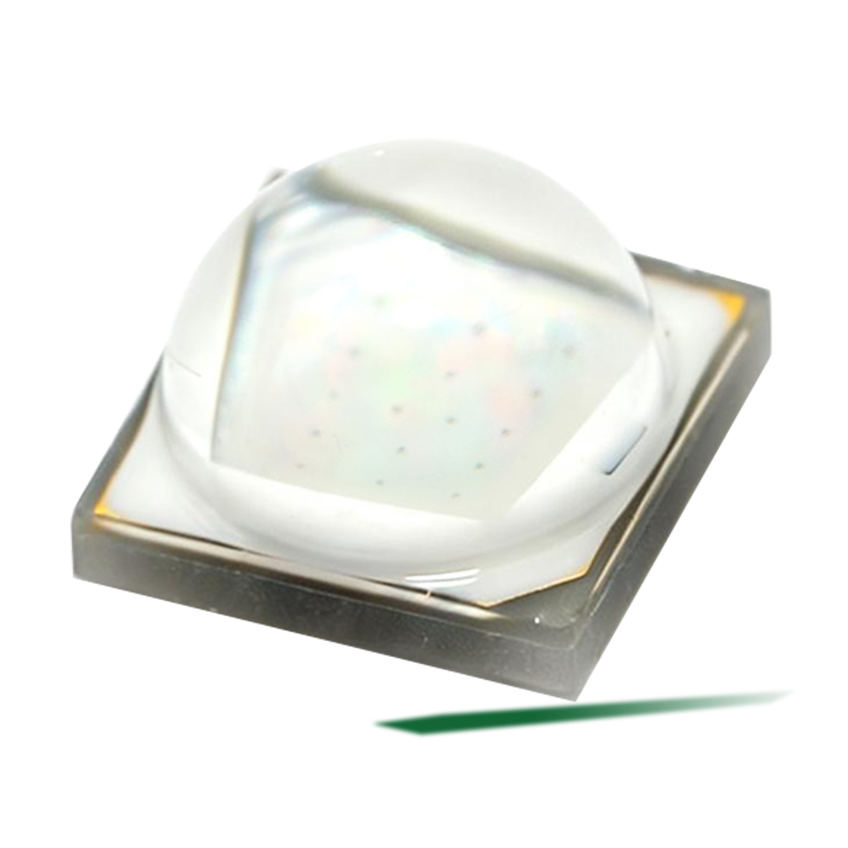

3535450 nm

· 3.5 mm × 3.5 mm
· Ceramic substrate, high power
· High PPF, WPE 75~80%
· LM-80 certified
Wavelength
(nm)
Radiant Power
(mW)
PPF/PF (μmol/s)  PPE/PE (μmol/J) Forward Cuttent
(mA)
Size
(mm)
450 1550 5.9 3.0 700 3.5×3.5

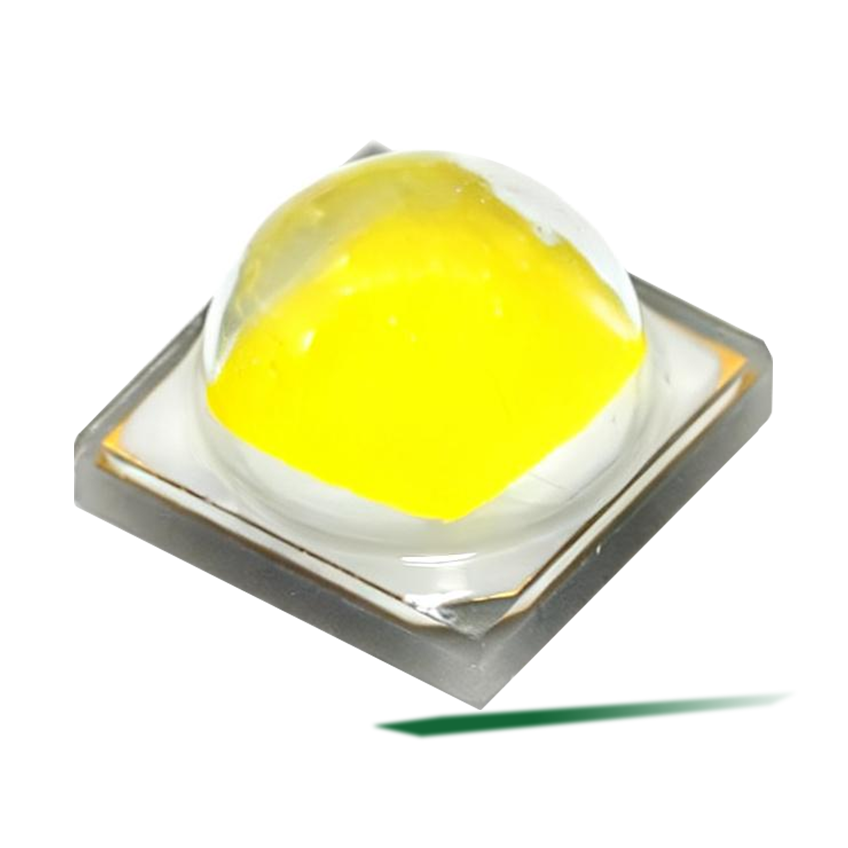

3535White

· 3.5 mm × 3.5 mm
· Ceramic substrate, high power
· High PPF, high luminous Flus
· LM-80 certified
CCT
(K)
Luminous Flus
(lm)
PPF/PF (μmol/s)  PPE/PE (μmol/J) Forward Cuttent
(mA)
Size
(mm)
6500 430 5.7 2.9 700 3.5×3.5
5000 440 5.7 2.9 700 3.5×3.5

660 nm

730 nm

450 nm

White
